Y STRAINER, Class 150 JIS10K (Flanged)

Y STRAINER, Class 150 JIS10K (Flanged)

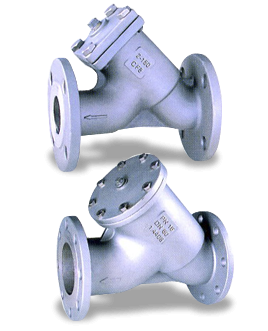

Product Name : Y STRAINER, Class 150 JIS10K (Flanged)
Product Description

VT-YF TYPE

10K/150LBS Y-STRAINER

SIZE:1/2"~12"

FEATURES:

  • FULL PORT
  • FACE TO FACE DIMENISIONS: JIS B2002/ANSI B16.10
  • END FLANGE DIMENISIONS: JIS B2239/ANSI B16.5
  • DESIGN: ANISI B16.34
  • TEST: API 589
  • INVESTMENT CASTING BODY:
    ASTM-A351-CF8M, ASTM-A351-CF8
    ASTM-A216-WCB

OPTION:

  • RATING JIS 20K/300LBS, DIN PN16, DIN PN40
Add to Inquiry
Product Introduction

MATERIAL LIST

NO PART NAME MATERIAL
1 BODY SCS13, SCS14, WCB
2 BONNET SCS13, SCS14, WCB
4 GASKET PTFE
3 SCREEW SUS304
5 BONNET BOLT ASTM A194 -B8 /A194-2H
6 STOPPER SUS304
