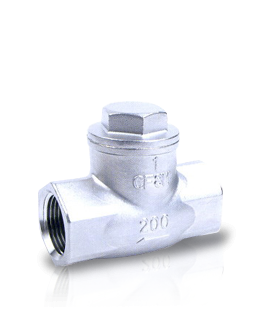

SWING CHECK VALVE, 200WOG (Threaded)

SWING CHECK VALVE, 200WOG (Threaded)
Product Name : SWING CHECK VALVE, 200WOG (Threaded)
Product Description

CLASS 200 SWING CHECK

SIZE: 1/2"~3"

FEATURES:

  • Investment casting body.
  • Full port, pressure temperature rating 200 PSI/W.O.G. 350° F S.P.
  • Threaded ends conform to ANSI B 2.1, BS 21, DIN 259/2999, ISO 228
  • Class 200 screwed cap, swing type disc, integral seat.
Add to Inquiry
Product Introduction
ITEM PARTS MATERIAL Q,TY
1 BODY ASTM-A351-CF8M 1
2 COVER ASTM-A351-CF8M 1
3 DISC ASTM-A351-CF8M 1
4 HING PIN AISI 316 1
5 GASKET TEFLON 1
6 PLUG AISI 316 1
7 PLUG TEFLON 1
