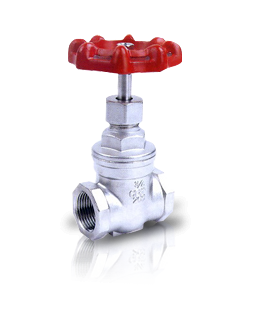

Product Name : THREADED END GATE VALVE
Product Description

CLASS 200 GATE VALVE

SIZE: 1/2"~2"

FEATURES:

  • Full port, pressure temperature rating 200 PSI/W.O.G. 350° F S.P.
  • Threaded ends conform to ANSI B 2.1, BS 21, DIN 259/2999, ISO 228
  • Stainless steel class 200 inside screw and screwed bonnet, wedge disc integral seat, non-rising stem and handwheel.
Add to Inquiry
Product Introduction
ITEM PARTS MATERIAL
1 BODY ASTM-A351-CF8M
2 BONNET ASTM-A351-CF8M
3 DISC ASTM-A351-CF8M
4 STEM AISI 316
5 STEM WASHER AISI 316
6 SNAP WASHER AISI 316
7 PACKING
 PTFE
8 GLAND AISI 316
9 PACKING NUT ASTM-A351-CF8M
10 PACKING PTFE
11 HAND WHEEL CAST IRON
12 PLATE ALUMINUM
13 WHEEL NUT AISI 316
