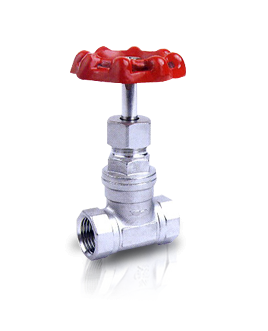

THREADED END GLOBE VALVE

THREADED END GLOBE VALVE
Product Name : THREADED END GLOBE VALVE
Product Description

CLASS 200 GLOBE VALVE

SIZE: 1/2"~2"

FEATURES:

  • Full port, pressure temperature rating 200 PSI/W.O.G. 350° F S.P.
  • Threaded ends conform to ANSI B 2.1, BS 21, DIN 259/2999, ISO 228
  • Stainless steel class 200 inside screw and screwed bonnet, swivel disc integral seat, non-rising stem and handwheel.
Add to Inquiry
Product Introduction
ITEM PARTS MATERIAL
1 BODY ASTM-A351-CF8M
2 BONNET ASTM-A351-CF8M
3 DISC AISI 316
4 STEM AISI 316
5 STEM WASHER AISI 316
6 STEM PACKING TEFLON
7 SLEEVE AISI 316
8 PACKING NUT AISI 316
9 GASKET TEFLON
10 HAND WHEEL CAST IRON
11 NAME PLATE ALUMINUM
12 WHEEL NUT AISI 316
