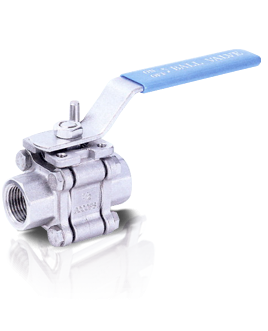

Product Name : 3PC THREADED / SOCKET / BUTT WELD END BALL VALVE
Product Description

V-3W TYPE

SIZE: 1/4"~2"

3000WOG / 2000WOG

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

CARBON STEEL

S-20C

(EN10213 1.0619)(ASTM-A216-WCB)

  • Reduced port
  • Pipe thread in accordance with ANSI B2.1,BS21 1973, DIN 259/2999, ISO 228
  • Blow-out proof stem
  • Investment casting body and cap
  • Encapsulated body
  • 1/4"~1":3000 WOG(200 BAR)
  • 1-1/4"~2": 2000 WOG(130 BAR)
  • Mounting pad ISO 521
  • Locking device
