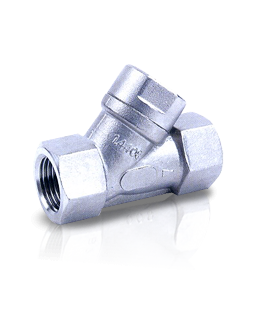

PISTON CHECK VALVE, PN40 (Threaded)

PISTON CHECK VALVE, PN40 (Threaded)
Product Name : PISTON CHECK VALVE, PN40 (Threaded)
Product Description

VT-P TYPE

PN40 PISTON CHECK VALVE

SIZE: 1/4"~2"

FEATURES:

  • Investment casting body.
  • PN40 rating
  • Maximum working temperature 230°C
  • The end-to-end length conforms to DIN 3203 Part 4. M8 series (PN40)
  • Thread ends conform to ANSI B2.1, BS21, DIN259/2999 standard, ISO 228
Add to Inquiry
Product Introduction
ITEM PARTS MATERIAL
1 BODY ASTM-A351-CF8M
2 CAP ASTM-A351-CF8M
3 SPRING AISI 316
4 DISC AISI 316
5 SEAT PTFE
6 WASHER AISI 304
7 NUT AISI 304
8 JOINT GASKET PTFE
