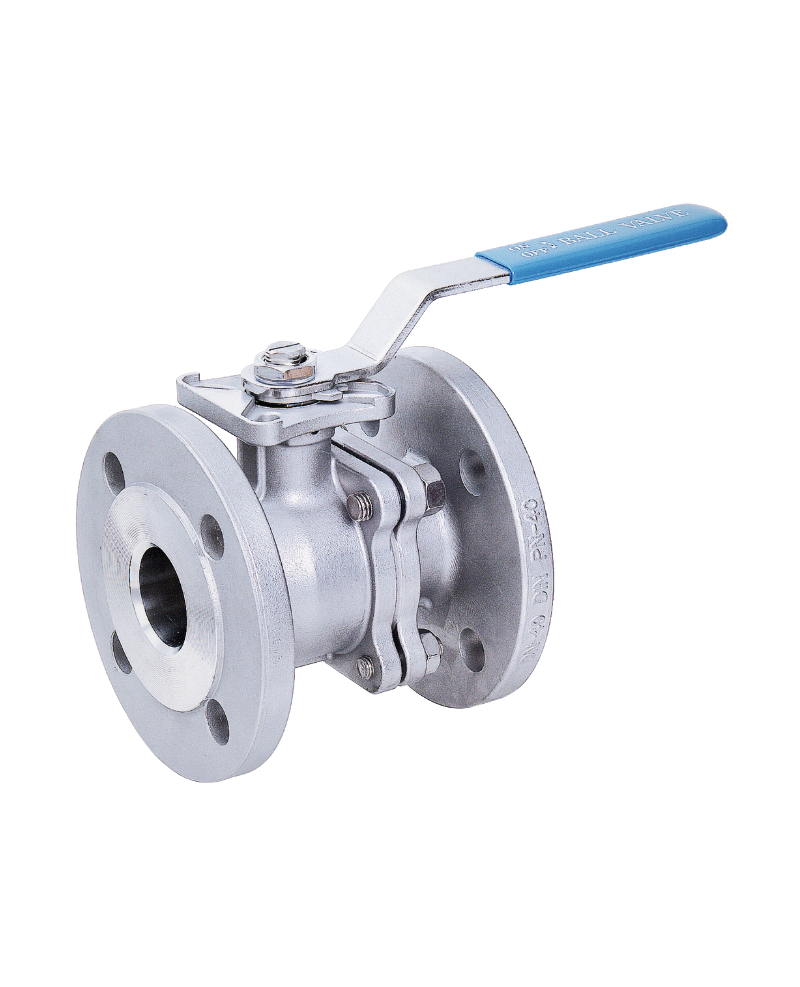

Product Name : 2-PC BALL VALVE, PN16 PN40, TA-Luft (Flanged)
Product Description

V-2FH PN16/PN40 TYPE

Welcome to contact us for the technical data sheet.


TA-LUFT APPROVED | ISO-15848-1 Fugitive Emission


SIZE:

  • 1/2"~6"

END CONNECTION:

  • Flanged: EN1092-1 PN16 / PN40
  • Face to Face: DIN3202 F4 (1/2"~4"), F5 (5"~6")
  • Full Port
  • Anti-static device
  • Fire Safe design
  • Blow-out proof stem, lever operated
  • Solid ball
  • Direct Mounting Pad ISO 5211
  • Round Handle design (5"~6")
  • DIN PN16 (2-1/2"~6")
  • API 607 Fire Safe approved
  • Locking device
  • Hollow ball
  • ISO 15848-1 Approval
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS14A
  • AISI-304 / EN10213 1.4308 / ASTM-351-CF8 / JIS-SCS13A
Carbon Steel
  • S-20C / EN10213 1.0619 / ASTM-A216-WCB / JIS-SCPH2

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.



Valtec_Material Table

All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.
