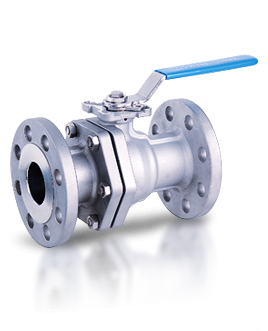

Product Name : 2-PC BALL VALVE, JIS 10K / 20K (Flanged)
Product Description

V-2FH-10K/JIS 20K TYPE

SIZE:1/2"~4"

DIRECT MOUNTING PAD

STAINLESS STEEL

AISI-316

(EN10213 1.4408)(ASTM-A351-CF8M)

AISI-304

(EN10213 1.4308)(ASTM-A351-CF8)

CARBON STEEL

S-20C

(EN10213 1.0619)(ASTM-A216-WCB)

Add to Inquiry
  • Flange:
    • JIS 10K B2212  / JIS 20K B2214
  • Anti-static device, fire safe design
  • Blow-out proof stem, lever operated
  • Solid ball
  • Direct mounting pad ISO 5211
  • Wrench handle(Different mould)
  • Lock device(Different mould: 10K)
  • Hollow ball(Different mould: 10K)
DIMENSIONS(JIS 10K) (UNIT:mm)
NOMINAL
SIZE		ØdØD1ØPcdLHH1WQVV1XX1W1TORQUE Nm
1/2" 15 95 70 110 46.5 56 110 9.0 42 R3.0     89 4~5
3/4" 20 100 75 120 51.5 61 110 9.0 42 R3.0 50 7 94 6~8
1" 25 125 90 130 57.5 67 136 11 42 R3.0 50 7 95 8~10
1-1/4 32 135 100 140 71.5 87 175 14 50 R3.5 70 9 105.7 12~14
1-1/2" 40 140 105 165 76.5 92 203 14 50 R3.5 70 9 110.7 18~20
2" 50 155 120 180 83.5 99 203 14 50 R3.5 70 9 117.7 25~30
2-1/2" 65 175 140 190 118.5 137 277.5 17 70 R4.5 102 11 155.5 32~36
3" 80 185 150 200 129.5 148 277.5 17 70 R4.5 102 11 166.5 50~60
4" 100 210 175 230 145 163.5 377.5 17 70 R4.5 102 11 182 85~95
5" 125 250 210 325 158.5 202.5 500 27 102 R6 125 R7 225 145~160
6" 150 280 240 350 175 221.3 600 27 102 R6 125 R7 241.5 170~185


DIMENSIONS(JIS 10K) (UNIT:mm)
NOMINAL
SIZE		ØdØDØPcdLHH1WQVV1XX1W1TORQUE Nm
1/2" 15 95 70 140 47.5 56 110 9.0 42 R3.0     89 4~5
3/4" 20 100 75 152 58.5 61 110 9.0 42 R3.0 50 R3.5 94 6~8
1" 25 125 90 165 62.5 67 136 11 42 R3.0 50 R3.5 95 8~10
1-1/2" 40 140 105 190 78.0 92 203 14 50 R3.5 70 R4.5 110.7 18~20
2" 50 155 120 216 83.5 99 203 14 50 R3.5 70 R4.5 117.7 25~30
2-1/2" 65 175 140 241 118.5 137 277.5 17 70 R4.5 102 11 155.5 32~36
3" 80 200 160 283 129.5 148 277.5 17 70 R4.5 102 11 166.5 50~60
4" 100 225 185 305 145 163.5 377.5 17 70 R4.5 102 11 182 85~95
