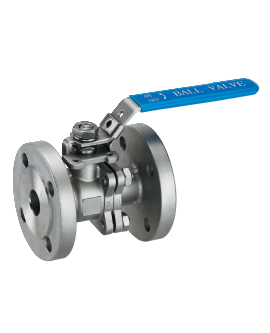

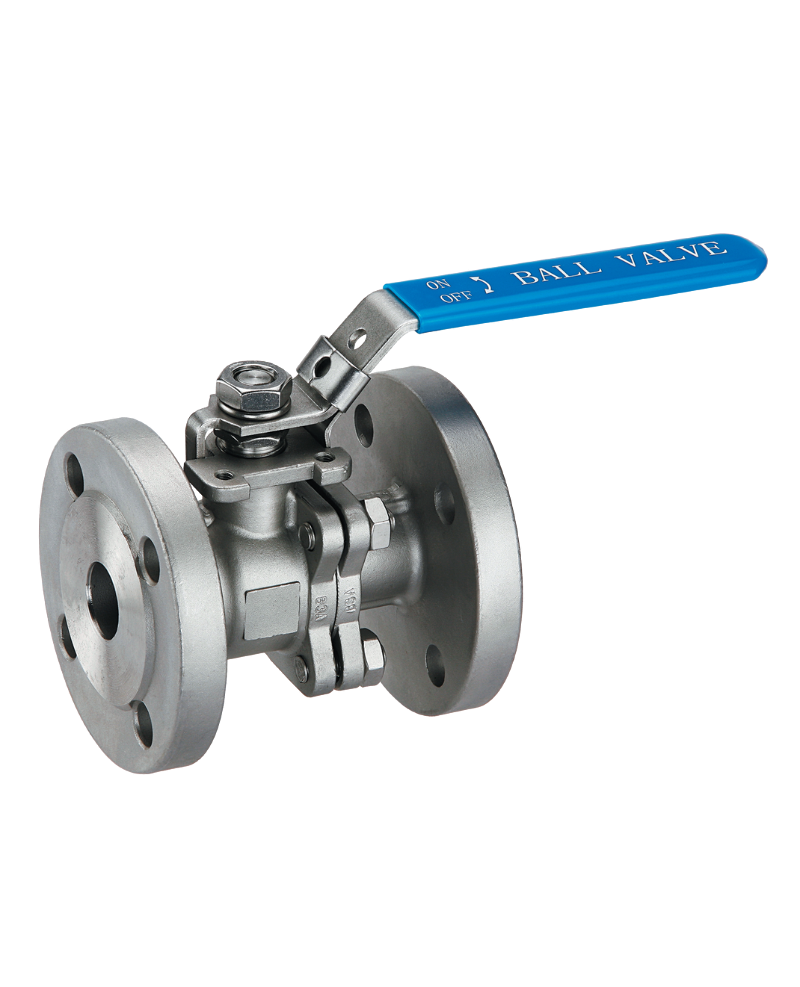

2-PC BALL VALVE, Class 150 (Flanged)

Valtec_V-2F_Class 150

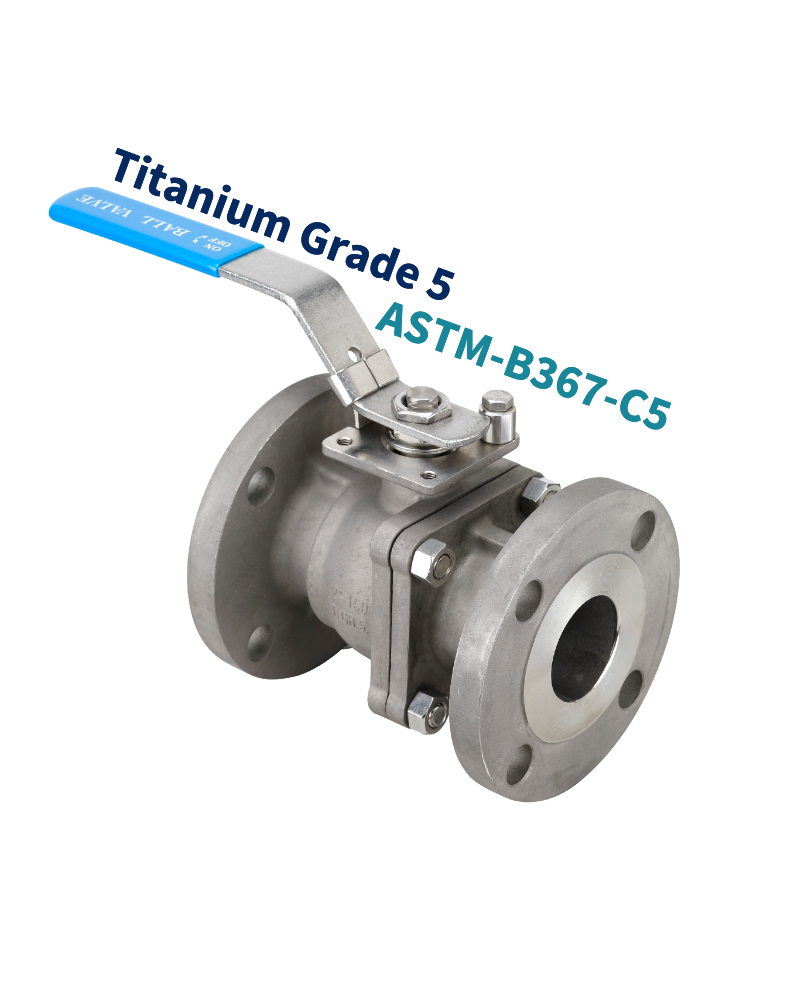

Valtec_V-2F_Class 150 (Titanium)
Product Name : 2-PC BALL VALVE, Class 150 (Flanged)
Product Description

V-2F Class150 TYPE

Welcome to contact us for the technical data sheet.


FIRE SAFE APPROVED | API 607


SIZE:

  • 1/2"~12" 1000 CWP (PN 63)

END CONNECTION:

  • Flanged: ASME B16.5 Class 150
  • Face to Face: ASME B16.10
Add to Inquiry
  • Full port
  • Anti-static device
  • Fire Safe design
  • Blow-out proof stem, lever operated
  • Mounting Pad ISO 5211
  • Solid ball /Hollow ball / Welding ball
  • Casting handle (WCB)
  • Locking device
Stainless Steel
  • AISI-316 / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS13A
  • AISI-304 / EN10213 1.4308 / ASTM-351-CF8 / JIS-SCS13A
Carbon Steel
  • S-20C / EN10213 1.0619 / ASTM-A216-WCB / JIS-SCPH2

The standard supply includes carbon steel and stainless steel. Upon request, we can provide alternative materials.

All ball valves can be supplied with an EN 10204-3.1 material and test certificate.



Valtec_Material Table

All Valtec valves undergo testing in accordance with EN 12266-1, achieving leakage rate A and Bubble Tight Shutoff, with the option for testing according to ISO 5208 or API 598 upon request.
