3-PC HIGH PURITY BALL VALVE, 1000PSI (Long Butt Weld End)

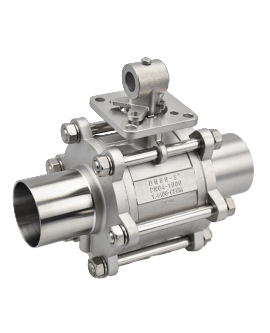

Valtec_V-3SAN-H-MH-BW-L_High Purity Ball Valve
Product Name : 3-PC HIGH PURITY BALL VALVE, 1000PSI (Long Butt Weld End)
Product Description

V-3SAN-H-MH TYPE

Welcome to contact us for the technical data sheet.


High Purity Application | Semiconductor, Ultrapure water

Direct Mounting Pad ISO 5211


SIZE:

  • 1/4"~4" 1000 WOG (PN64)
  • 5"~8" 720 WOG (PN50)
Add to Inquiry
Product Introduction
  • Full port
  • Long Butt Weld End (JIS SCH5, JIS SCH10, Tubing)
  • Swing out 3pc valve body design for easy maintenance
  • Investment casting body and cap
  • Blow-out proof stem
  • Viton O-ring on stem provides extra support and tightness
  • Inside port polished Ra 0.25 ~ 0.58 µm
  • Orbital Welding: extended 316L stainless steel weld ends for automated welding without valve disassembly
  • Bosses built into the body and cap for purge connections (CIP/SIP operations)
  • High purity cleaning (oil free) and packaging
  • Direct mounting pad ISO 5211
  • Clamp end
  • Locking device
  • Anti-static device
  • Cavity filled seats
  • Semiconductor Industry
    • Wafer processing and equipment
    • Semiconductor cooling center
    • Chemical Delivery System (CDS)
    • Clean room environments
  • Specialty and Inert Gas Systems
    • Ultra-High purity (UHP) gas distribution
    • Specialty gas cabinets and valve manifold boxes
    • Inert gas blanketing and purging systems
  • Aerospace Industry
    • Propulsion and fluid control systems
    • Precision instrumentation manufacturing
  • High Purity Water Systems
    • Ultrapure water (UPW) production and distribution
    • Deionized (DI) water systems
    • Water reclamation and recycling
  • Pharmaceutical and Biotech Industry
    • Pharmaceutical manufacturing and formulation
    • Bioreactors and fermentation systems
    • Sanitary and regulatory-compliant piping
    • Clean-in-Place (CIP) and Sterilize-in-Place (SIP) systems
  • Food and Beverage Industry
    • Dairy processing and beverage production
    • Brewing and distilling pipelines
    • Clean-in-Place (CIP) and Sterilize-in-Place (SIP) systems
Stainless Steel
  • AISI-316   / EN10213 1.4408 / ASTM-351-CF8M / JIS-SCS14A
  • AISI-316L / EN10213 1.4409 / ASTM-351-CF3M / JIS-SCS16A

Upon request, we can provide alternative materials.
